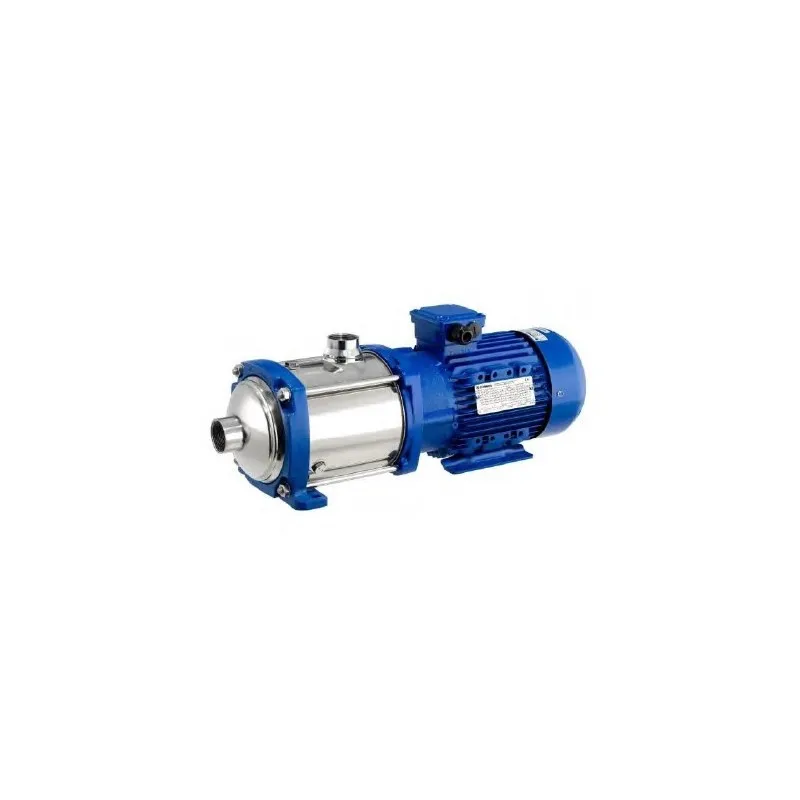

Lowara horizontal multistage centrifugal pump 1HM18S11M5HQBE single phase EMPLOYMENTS The e-HM series can be installed both in single private homes and in small/medium sized residential buildings for water supply and for pressurization systems such as: Water supply Rainwater collection Pressurization Irrigation ADVANTAGES Recovery of investment: the installation of the e-HM series guarantees a very rapid return on investment as the high level of efficiency makes the e-HM the fixed speed pump with the lowest energy consumption on the market Reliability: the e-HM series also guarantees reliable operations over time thanks to its resistant and innovative design Comfort: the e-HM series guarantees an increase in comfort for the user thanks to very silent operation ELECTRIC PUMP DATA Model 1HM18S11M5HQBE E2 Code 104605D71 MOTOR Diet Single phase 1 x 220-240 V, 50 Hz Insulation class F (155°C) Degree of protection IP55 Efficiency level IE2 for single-phase motors greater than 0.12 kW IE2 for three-phase motors up to and including 0.55 kW IE3 for 0.75 kW three-phase motors included TECHNICAL DATA Operating pressure 10 bars Room temperature 0°C - 40°C Max. liquid temperature single phase: 60°C three-phase: max 120°C MATERIALS Body Pump AISI 304 stainless steel Impeller AISI 304 stainless steel Elastomers EPDM VBE mechanical seal Ceramic-carbon Q1BE mechanical seal Silicon carbide-carbon HYDRAULIC PERFORMANCE Mouths P Weight Wait. Send. kW Kg Rp1 Rp1 1.1 21 m3/h 0 0.7 1 1.3 1.6 1.9 2,2 2.4 l/min 0 11.7 16.7 21.7 26.7 31.7 36.7 40 H 109.0 107 105 99.2 90.9 79.6 65.5 52.1 INSTALLATION MANUALDATA SHEET Lowara horizontal multistage centrifugal pump 1HM18S11M5HQBE single phase
